Patterns
Plan a day
Reserve time for meaningful work while keeping projects, events, and time away distinct.
On this page
User goal
Reserve time for meaningful work while keeping projects, events, and time away distinct.
Workflow
| Step | Expected behavior |
|---|---|
| 1 | Choose the day. Identify whether it is Today, future planning, or locked history before offering mutations. |
| 2 | Review the agenda and active filters. Hidden categories are still scheduled records. |
| 3 | Choose Block time or an open gap, then select the activity type. |
| 4 | Provide the project or title and a valid start/end range in the actual block editor. |
| 5 | Validate placement and save through the parent. Moving and resizing use 15-minute increments. |
| 6 | Review the next action inside the scheduled project block rather than adding duplicate task context. |
Decision rules
- Keep the agenda’s 7:00–20:00 defaults and 156px/hour scale consistent with its placement math.
- The current placement rule allows up to two simultaneous entries; more than two is rejected.
- Time away represents unavailability, not a project with an unfinished next action.
- Use the same project color, name, and area across overview and scheduled work.
Edge cases and recovery

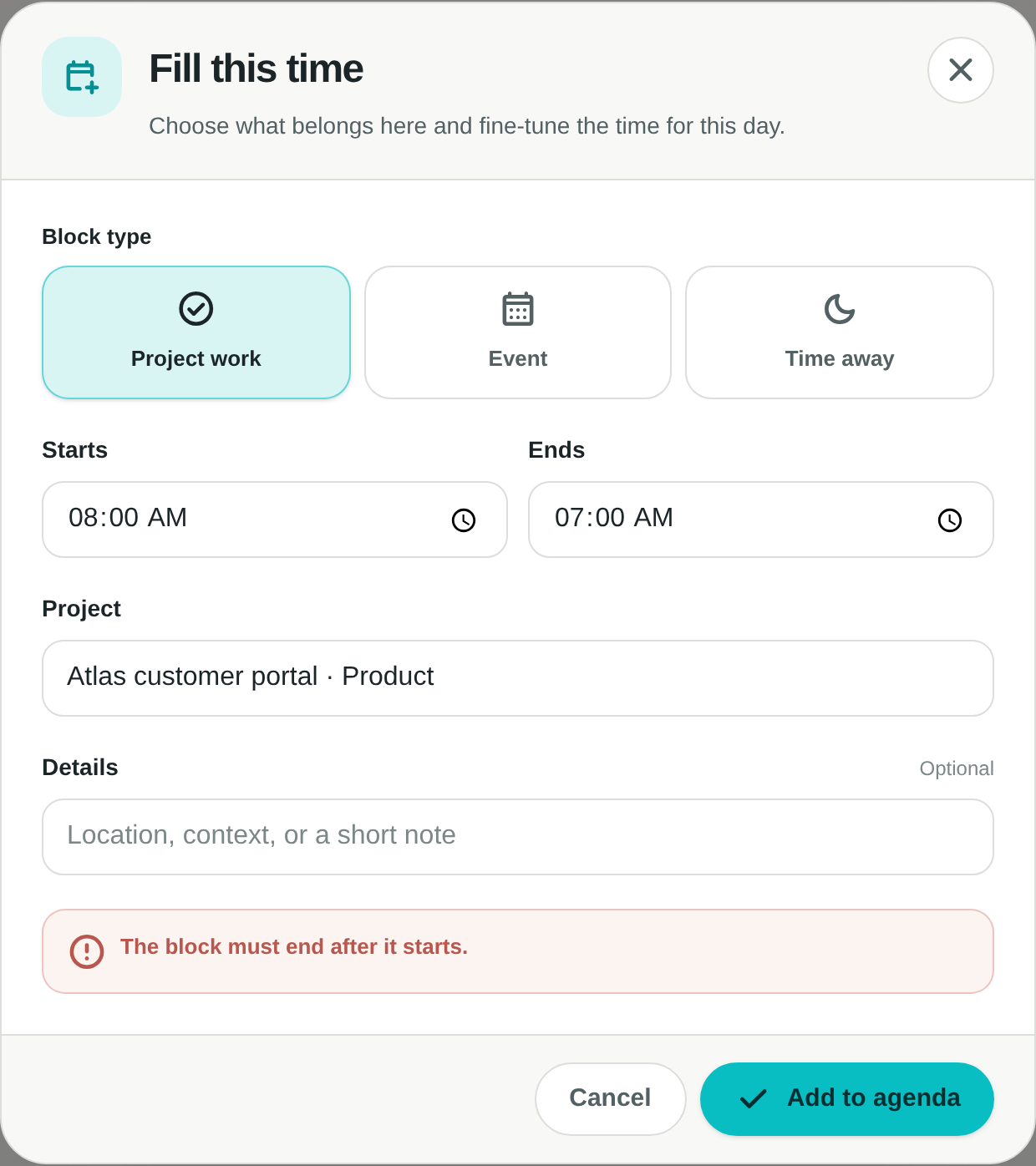

- End must follow start; demonstrate validation before network success.
- A future or current day can be edited; past-day edits are blocked by the workspace.
- Creation via time inputs exists; equivalent keyboard move/resize behavior still needs a product-level decision.
- A failed day request currently stops loading without a comprehensive retry pattern. Do not present an empty result as confirmed absence of work.
Source references
| File | Responsibility |
|---|---|
| app/components/radar-workspace.tsx | Date and view state |
| app/components/radar-calendar.tsx | Placement and mutation |
| app/components/agenda-block-modal.tsx | Draft and validation |

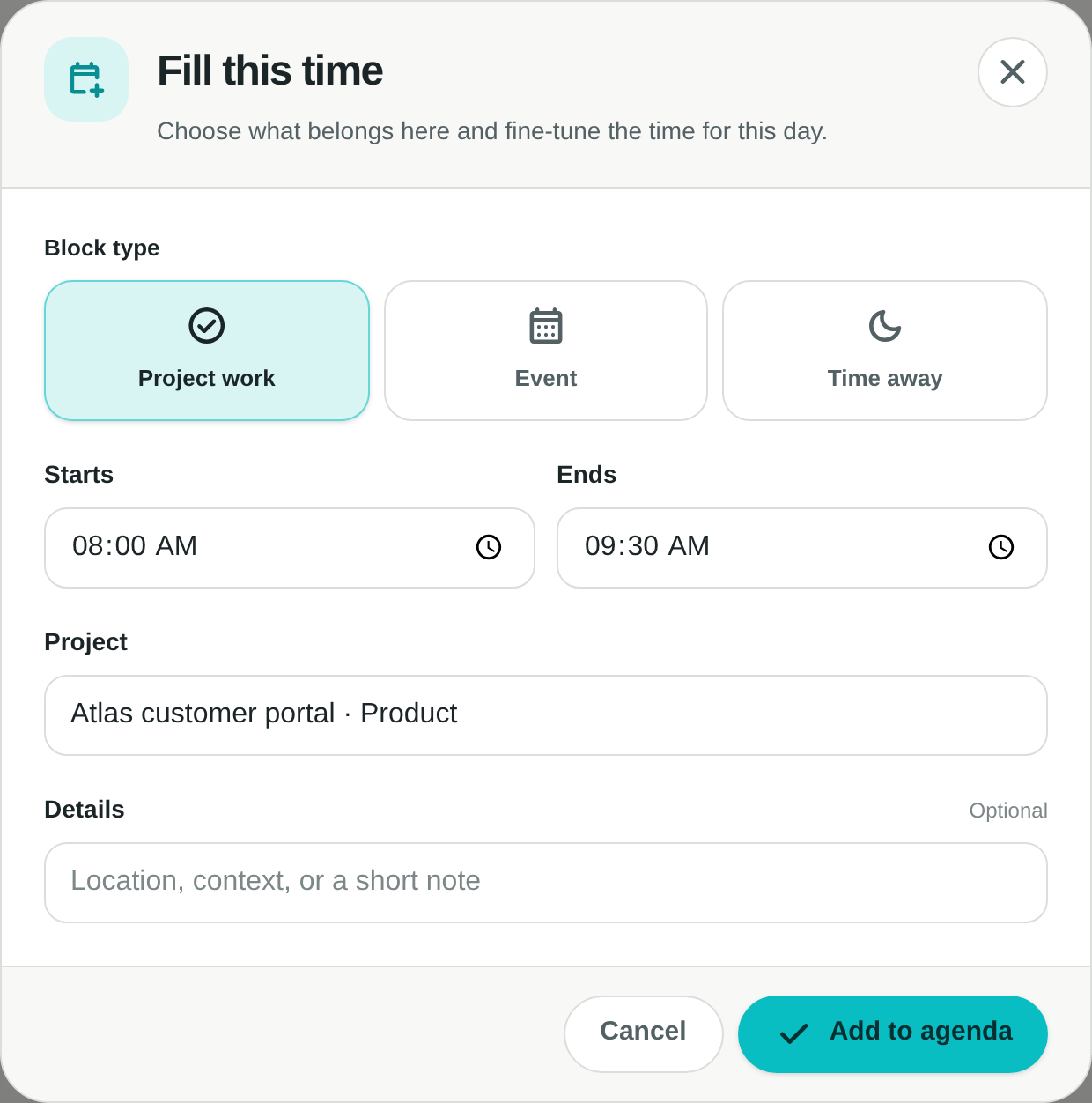

Examples from the app
Actual Radarist components with fictional data. Captured at 2× resolution or higher. Select an image to inspect it full size.
Related topics
Source audit: 2026-10-07 · Revision 0103e2549959 · Documentation v0.1
